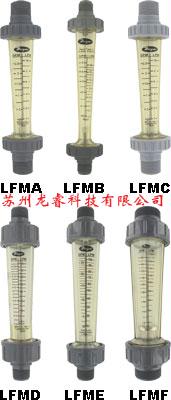

Dwyer LFM系列聚碳酸酯浮子流量计

鼠标点击图片放大

产品名称： Dwyer LFM系列聚碳酸酯浮子流量计 公司名称： 龙睿科技官方网站 产品型号： 产品简介：

详细说明

指示水流量



特性

介质: Water.
接液材质:



型号	本体	Flange Nut	Float Stop	Float	O'ring	Female Thread	Male Thread	90° Male NPT Elbow	Metric Union
LFMA	聚碳酸酯	ABS	ABS	316 SS	氟橡胶	/	ABS	PVC	ABS
LFMB	聚碳酸酯	ABS	ABS	316 SS	氟橡胶	/	ABS	PVC	ABS
LFMC	聚碳酸酯	ABS	ABS	316 SS	氟橡胶	/	ABS	PVC	ABS
LFMD	聚碳酸酯	ABS	聚丙烯	316 SS	氟橡胶	PA66 (nylon)	PA66 (nylon)	PVC	PVC
LFME	聚碳酸酯	ABS	聚丙烯	316 SS	氟橡胶	PA66 (nylon)	PA66 (nylon)	PVC	PVC
LFMF	聚碳酸酯	ABS	聚丙烯	316 SS	氟橡胶	PA66 (nylon)	PA66 (nylon)	/	ABS

压力限制: 120 psi (8.2 bar) at 68°F (20°C); 90° elbow fittings: 116 psi (8 bar) at 68°F (20°C).
精度: ±5%.
连接:
LFMA: 1/2" male NPT (optional 20 mm metric union).
LFMB: 1/2" male NPT (optional 20 mm metric union or 1/2" male NPT with 90° elbow).
LFMC: 1/2" male NPT (optional 20 mm metric union, 3/4" male NPT, or 1/2" male NPT with 90° elbow).
LFMD: 3/4" male NPT (optional 32 mm metric union, 3/4" female NPT, or 3/4" male NPT with 90° elbow).
LFME: 1" male NPT (optional 40 mm metric union, 1" female NPT, or 1" male NPT with 90° elbow).
LFMF: 2" male NPT (optional 63 mm metric union or 2" female NPT).
重量: LFMA: 2 oz (56.7 g); LFMB: 3 oz (85.0 g); LFMC: 4 oz (113.4 g); LFMD: 10 oz (283.5 g); LFME: 15 oz (425.2 g); LFMF: 40 oz (1.1 kg).

注意: LFM 系列流量计仅适用于室内或无阳光直射的地方.





型号	描述
LFMA-01-A2	聚碳酸酯流量计, 范围 0.1-1 GPM (.5-4 LPM) 水, 1/2" male NPT, 316 SS float.
LFMA-02-A2	聚碳酸酯流量计, 范围 0.2-2 GPM (1-7 LPM) water, 1/2" male NPT, 316 SS float.
LFMA-03-A2	聚碳酸酯流量计, 范围 0.5-5 GPM (1.8-18 LPM) water, 1/2" male NPT, 316 SS float.
LFMB-04-A2	聚碳酸酯流量计, 范围 0.1-1 GPM (.5-4 LPM) water, 1/2" male NPT, 316 SS float.
LFMB-05-A2	聚碳酸酯流量计, 范围 0.2-2 GPM (1-7 LPM) water, 1/2" male NPT, 316 SS float.
LFMB-06-A2	聚碳酸酯流量计, 范围 0.5-5 GPM (1.8-18 LPM) water, 1/2" male NPT, 316 SS float.
LFMC-07-A2	聚碳酸酯流量计, 范围 0.25-2.5 GPM (1-10 LPM) water, 1/2" male NPT, 316 SS float.
LFMC-08-A2	聚碳酸酯流量计, 范围 0.5-5 GPM (1.8-18 LPM) water, 1/2" male NPT, 316 SS float.
LFMC-09-A2	聚碳酸酯流量计, 范围 0.8-8 GPM (3-30 LPM) water, 1/2" male NPT, 316 SS float.
LFMD-10-C2	聚碳酸酯流量计, 范围 0.8-8 GPM (3-30 LPM) water, 3/4" male NPT, 316 SS float.
LFMD-11-C2	聚碳酸酯流量计, 范围 1-10 GPM (4-40 LPM) water, 3/4" male NPT, 316 SS float.
LFME-12-F2	聚碳酸酯流量计, 范围1.2-12 GPM (5-50 LPM) water, 1" male NPT, 316 SS float.
LFME-13-F2	聚碳酸酯流量计, 范围2-20 GPM (8-80 LPM) water, 1" male NPT, 316 SS float.
LFME-14-F2	聚碳酸酯流量计, 范围 2.5-25 GPM (10-100 LPM) water, 1" male NPT, 316 SS float.
LFMF-15-I2	聚碳酸酯流量计, 范围 2.5-25 GPM (10-100 LPM) water, 2" male NPT, 316 SS float.
LFMF-16-I2	聚碳酸酯流量计, 范围 5-45 GPM (20-180 LPM) water, 2" male NPT, 316 SS float.
LFMF-17-I2	聚碳酸酯流量计, 范围7-70 GPM (25-250 LPM) water, 2" male NPT, 316 SS float.
A-560	20 mm metric union fitting - ABS (Series LFMA).
A-566	1/2" male NPT fitting - ABS (Series LFMA).
A-561	20 mm metric union fitting - ABS (Series LFMB).
A-567	1/2" male NPT fitting - ABS (Series LFMB & LFMC).
A-575	1/2" male NPT with 90° elbow fitting - PVC (Series LFMB).
A-562	20 mm metric union fitting - ABS (Series LFMC).
A-568	3/4" male NPT fitting - ABS (Series LFMC).
A-576	1/2" male NPT with 90° elbow fitting - PVC (Series LFMC).
A-563	32 mm metric union fitting - PVC (Series LFMD).
A-569	3/4" male NPT fitting - nylon (Series LFMD).
A-572	3/4" female NPT fitting - nylon (Series LFMD).
A-577	3/4" male NPT with 90° elbow fitting - PVC (Series LFMD).
A-564	40 mm metric union fitting - PVC (Series LFME).
A-570	1" male NPT fitting - nylon (Series LFME).
A-573	1" female NPT fitting - nylon (Series LFME).
A-578	1" male NPT with 90° elbow fitting - PVC (Series LFME).
A-565	63 mm metric union fitting - ABS (Series LFMF).
A-571	2" male NPT fitting - nylon (Series LFMF).
A-574	2" female NPT fitting - nylon (Series LFMF).
